Context
These projects were part of my Licence Computer Science coursework at UPEC. The objective: implement classic games from scratch to develop mastery of Object-Oriented design, data structures, and classical AI algorithms.
No game engines. No frameworks. Pure Java with javax.swing for rendering.
Pac-Man — Ghost AI with BFS

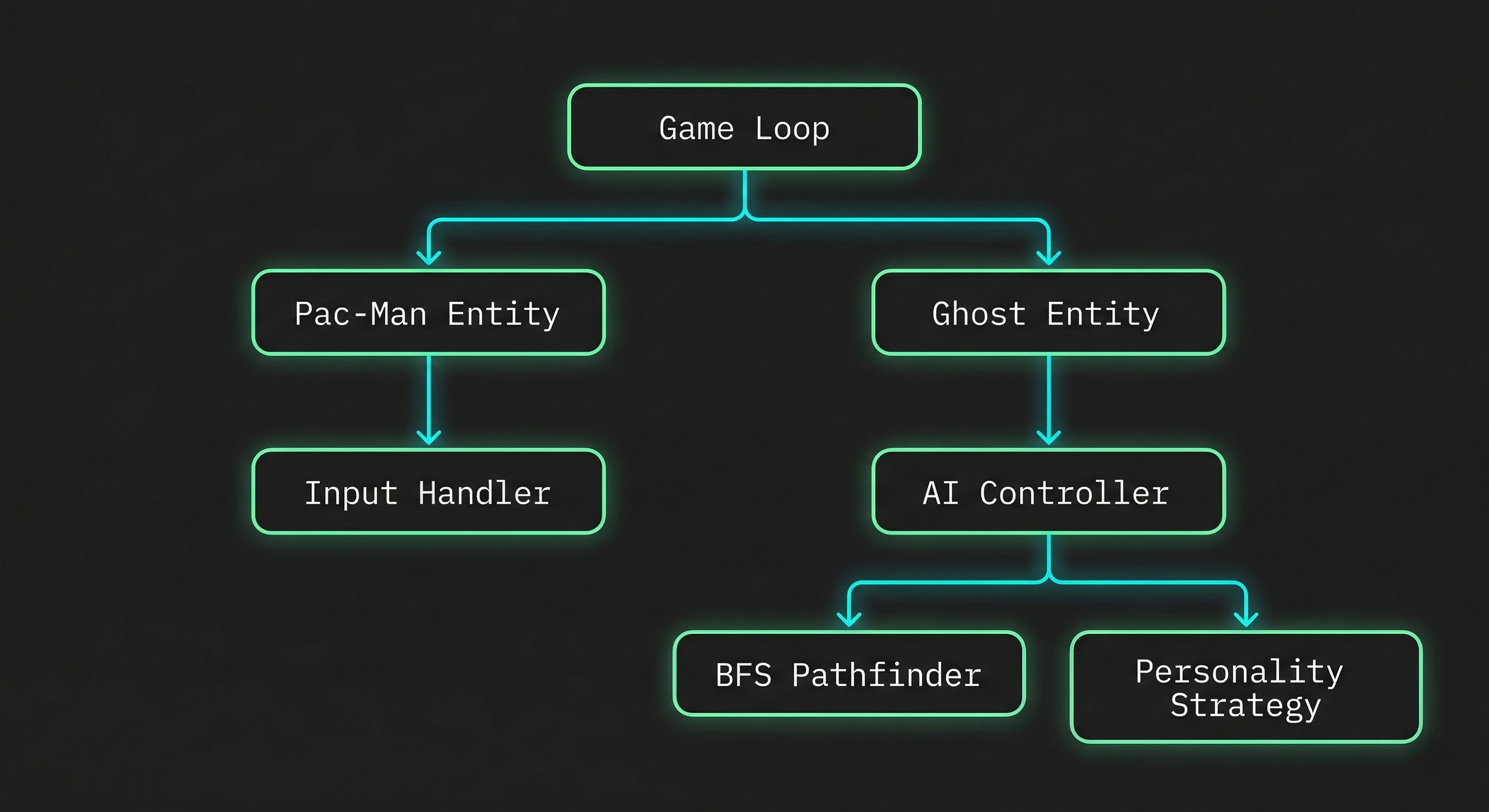

Architecture
BFS Pathfinding
Each ghost runs BFS on the maze graph to find the shortest path to its current target:
// pathfinding/BFSPathfinder.java
public class BFSPathfinder {
private final boolean[][] walls;
private final int rows, cols;
private static final int[][] DIRECTIONS = {{-1,0},{1,0},{0,-1},{0,1}};
public List<Point> findPath(Point start, Point target) {
if (walls[target.y][target.x]) return Collections.emptyList();
Queue<Point> queue = new LinkedList<>();
Map<Point, Point> parent = new HashMap<>();
queue.offer(start);
parent.put(start, null);
while (!queue.isEmpty()) {
Point current = queue.poll();
if (current.equals(target)) {
return reconstructPath(parent, target);
}
for (int[] dir : DIRECTIONS) {
Point neighbor = new Point(
current.x + dir[1],
current.y + dir[0]
);
if (isValid(neighbor) && !parent.containsKey(neighbor)) {
parent.put(neighbor, current);
queue.offer(neighbor);
}
}
}
return Collections.emptyList(); // No path found (should not happen in Pac-Man)
}
private boolean isValid(Point p) {
return p.x >= 0 && p.x < cols
&& p.y >= 0 && p.y < rows
&& !walls[p.y][p.x];
}
private List<Point> reconstructPath(Map<Point, Point> parent, Point target) {
List<Point> path = new ArrayList<>();
Point current = target;
while (current != null) {
path.add(0, current);
current = parent.get(current);
}
return path;
}
}Ghost Personalities — Strategy Pattern
The four Pac-Man ghosts have different targeting strategies — a great application of the Strategy pattern:
// ghost/strategy/GhostStrategy.java
public interface GhostStrategy {
Point getTarget(Ghost ghost, PacmanEntity pacman, Ghost[] allGhosts, Maze maze);
}
// Blinky: targets Pac-Man's exact position (direct chaser)
public class BlinkyStrategy implements GhostStrategy {
@Override
public Point getTarget(Ghost ghost, PacmanEntity pacman,
Ghost[] allGhosts, Maze maze) {
return pacman.getGridPosition();
}
}
// Pinky: targets 4 tiles ahead of Pac-Man (ambusher)
public class PinkyStrategy implements GhostStrategy {
@Override
public Point getTarget(Ghost ghost, PacmanEntity pacman,
Ghost[] allGhosts, Maze maze) {
Point pac = pacman.getGridPosition();
Direction dir = pacman.getDirection();
return new Point(
pac.x + dir.dx * 4,
pac.y + dir.dy * 4
);
}
}
// Clyde: targets Pac-Man when far, scatters when close (shy)
public class ClydeStrategy implements GhostStrategy {
private static final int SCATTER_THRESHOLD = 8; // tiles
@Override
public Point getTarget(Ghost ghost, PacmanEntity pacman,
Ghost[] allGhosts, Maze maze) {
double distance = ghost.getGridPosition().distance(pacman.getGridPosition());
if (distance > SCATTER_THRESHOLD) {
return pacman.getGridPosition(); // Chase
}
return maze.getClydeScatterCorner(); // Scatter to bottom-left
}
}Othello — Minimax with Alpha-Beta Pruning
Othello (Reversi) is a perfect-information 2-player game, ideal for the minimax algorithm. Without optimizations, the game tree has ~58! nodes. Alpha-beta pruning reduces effective branching factor from ~10 to ~3-4.
// ai/MinimaxEngine.java
public class MinimaxEngine {
private final OthelloBoard board;
private final int maxDepth;
private final Heuristic heuristic;
// Returns best move for current player
public Move getBestMove(BoardState state, Disc player) {
Move best = null;
int bestScore = Integer.MIN_VALUE;
for (Move move : state.getLegalMoves(player)) {
BoardState next = state.apply(move);
int score = minimax(next, maxDepth - 1, Integer.MIN_VALUE,
Integer.MAX_VALUE, false, player);
if (score > bestScore) {
bestScore = score;
best = move;
}
}
return best;
}
private int minimax(BoardState state, int depth, int alpha, int beta,
boolean maximizing, Disc originalPlayer) {
// Base case: terminal state or max depth
if (depth == 0 || state.isTerminal()) {
return heuristic.evaluate(state, originalPlayer);
}
Disc currentPlayer = maximizing ? originalPlayer : originalPlayer.opponent();
List<Move> moves = state.getLegalMoves(currentPlayer);
// No legal moves: pass turn (Othello rule)
if (moves.isEmpty()) {
return minimax(state, depth - 1, alpha, beta, !maximizing, originalPlayer);
}
if (maximizing) {
int value = Integer.MIN_VALUE;
for (Move move : moves) {
value = Math.max(value,
minimax(state.apply(move), depth - 1, alpha, beta, false, originalPlayer));
alpha = Math.max(alpha, value);
if (beta <= alpha) break; // Beta cut-off (prune)
}
return value;
} else {
int value = Integer.MAX_VALUE;
for (Move move : moves) {
value = Math.min(value,
minimax(state.apply(move), depth - 1, alpha, beta, true, originalPlayer));
beta = Math.min(beta, value);
if (beta <= alpha) break; // Alpha cut-off (prune)
}
return value;
}
}
}Othello Heuristic
The heuristic is not just coin count — that’s a common mistake for beginners. Corner control and mobility matter far more:
// ai/OthelloHeuristic.java
public class OthelloHeuristic implements Heuristic {
// Positional weight matrix (8x8 board)
private static final int[][] WEIGHTS = {
{120,-20, 20, 5, 5, 20,-20,120},
{-20,-40, -5, -5, -5, -5,-40,-20},
{ 20, -5, 15, 3, 3, 15, -5, 20},
{ 5, -5, 3, 3, 3, 3, -5, 5},
{ 5, -5, 3, 3, 3, 3, -5, 5},
{ 20, -5, 15, 3, 3, 15, -5, 20},
{-20,-40, -5, -5, -5, -5,-40,-20},
{120,-20, 20, 5, 5, 20,-20,120}
};
@Override
public int evaluate(BoardState state, Disc player) {
int score = 0;
// 1. Positional score (corners = 120, edges = negative)
for (int r = 0; r < 8; r++) {
for (int c = 0; c < 8; c++) {
if (state.get(r, c) == player) score += WEIGHTS[r][c];
else if (state.get(r, c) == player.opponent()) score -= WEIGHTS[r][c];
}
}
// 2. Mobility: more legal moves = more flexibility
int myMoves = state.getLegalMoves(player).size();
int oppMoves = state.getLegalMoves(player.opponent()).size();
if (myMoves + oppMoves > 0)
score += 10 * (myMoves - oppMoves) / (myMoves + oppMoves);
return score;
}
}Key Takeaways
- BFS vs. A*: BFS guarantees shortest path in unweighted graphs. For Pac-Man’s maze (uniform costs), BFS is optimal — A* would only help if moves had different costs.
- Alpha-beta pruning can reduce minimax from O(b^d) to O(b^(d/2)) with perfect move ordering — doubling the effective search depth for the same compute budget.
- Strategy pattern isn’t abstract theory — Pac-Man’s four ghosts are a textbook case where polymorphism makes the codebase readable and extensible.
